XP Deus II 24x13 HF2 FMF RC WSA II XL complete set

Product no.: DEUS2-24x13HF2-FMFRCWSA2XL

XP is once again pushing the boundaries of high-end with the Deus II. This new wireless multi-frequency metal detector is unique worldwide in its features and performance. Once the coil, remote control, headphones, and pinpointer are paired, they communicate completely wirelessly and without delay via XP's patented radio protocol system (10x faster than Bluetooth).

This means that the finds / targets detected by the search coil are quickly and without delay transmitted to the headphones, giving the DEUS II absolutely unparalleled speed and accuracy. Thanks to FMF® technology (Fast Multi Frequency), the DEUS II performs excellently in any terrain and under all conditions both on land and underwater.

XP DEUS II 34 FMF RC WS6 Complete Set:

• 24x13: HF2 Double-D FMF depth search coil, waterproof carbon search coil
• FMF : FMF® technology, completely wireless multifrequency,  4-45kHz, XP patent
• RC   : Remote control as DEUS II control module, also called RC (Remote Control)
• WS6: Wireless master audio headphones with LCD and control module
• incl. S-telescopic rod & further accessories

The user has the option to choose between the new fast and simultaneous multi-frequency programs or between 49 single frequencies from 4 to 45 kHz. The graphic below illustrates the sensitivity and iron discrimination depending on frequency. The advantage of the XP Fast Multi-Frequency programs, which cover a wider spectrum of targets, can be clearly seen. This is just a basic schematic, which may vary depending on program and real terrain conditions, but you can see the greater find rate and depth.




12 preset factory programs:
General, Sensitive, Sensi.Vton, Fast, Park, Deep, Deus Mono, Gold Field, Relics, Diving, Beach, Beach Sens, Beach P, Fast40
+ 12 individually storable user programs give professional users extremely efficient application options and make it easier for beginners to achieve the highest find rate with simple operation.

With the patented, shockproof and waterproof remote control as Deus II control module, also called RC, the internal settings of the DEUS II can be adjusted. The remote control can be attached to the S-telescopic rod on a practical clip holder or stored in the supplied belt pouch.



Setting up and taking apart the detector typically takes just a few seconds with XP! And all this without annoying cables! The patented FMF depth search coil can be replaced in no time.

The slightly modified 3-part S-telescopic rod swings excellently at the handle, considerably better than straight telescope rods. The ergonomically shaped rubber handle fits very comfortably and slip-proof in the hand. We think: A metal detector can’t be more comfortable to hold.

The XP Deus II remote control is IP68 certified and is mechanically designed and waterproof for diving depths up to 20m.





XP introduces with the Deus II the first bone conduction headphones (Bone Conduction) for metal detectors, optionally available as an accessory.
The headphones generate the tones with encapsulated transducers that sit just in front of the auricles, i.e. where the temporal bone meets the cheekbone. The headphones have an amazingly good sound and allow the user to perceive environmental sounds completely, without obstructive earcups covering the ears.

XP Deus II bone conduction headphones (not included) can be used up to 20m diving depth and can also be used on land.

The DEUS II is also highly innovative detector design combined with XP's latest high-end technology using the patented FMF® technology (Fast Multi Frequency). With the new FMF search coils, the user enjoys unprecedented performance in search depth and comfort.

Precision in metal discrimination, stable location, the sensationally low weight, and the possibility to dive with the Deus II once again set the upper limits among high-end detectors!



The WS6 is not only a wireless audio headphone. The XP Deus WS6 wireless headphones control the functions of the miniature electronics integrated in the depth search coil. Without the Deus II remote control, the WS6 wireless headphones can also be connected directly to the search coil to form an independent and extremely light unit.

DEUS II General Data / Functions

• FMF®: Fast and simultaneous radio multi-frequency or 49 single frequencies from 4 to 45 kHz
• All Terrain: High performance on land and at the beach/underwater up to 20m waterproof
• 12 installed factory programs + 12 storable user programs
• Wide and precise discrimination range
• 99 levels of sensitivity
• Volume adjustable in 10 levels
• Reaction time 9 levels (0/0.5/1/1.5/2/2.5/3/4/5)
• Signal amplification adjustable in 8 levels
• Iron volume adjustable in 6 levels
• Multiple dynamic audio options: PWM, SQUARE and more to follow
• Audio Response, Iron Volume, Multi Tones, Notch, Reactivity, Threshold with audio frequency adjustable + many expert functions
• Ground balance ground tracking (automatic) or grabbing
• Motion and non-motion modes (pinpoint)
• Frequency shift + automatic frequency scan option for EMI noise suppression
• Independent audio volume adjustable for RC, wireless headphones and bone conduction headphones
• Control of the headphone volume by the remote control
• Volume control of the remote control
• Automatic switching on and off of the headphones
• 4-band sound equalizer, configurable for each audio output
• 4 adjustable bands per audio output
• XP radio link, 36 automatic channels
• Rod fully extendable, S-shaped for best handling
• Handle especially skin-friendly and slip-proof
• Rod extended 130cm
• Rod collapsed 58cm
• Operating temperature 0 to + 40°C
• Ambient temperature during charging 0 to + 40°C
• Recommended storage temperature 25°C
• XP manufacturer's warranty 5 years on parts and processing (batteries, charging cables, chargers 2 years).



Remote Control Technical Data

• Digital radio connection between the FMF depth search coil, remote control, and wireless headphones (+ the optional wireless pinpointer MI-6)
• Weight 150 gr. including battery
• Display 8192 pixels
• XY display adjustable
• Time display
• Battery indicator: remote control, coil, wireless headphones, pinpointer
• IP68 certified, waterproof up to 20m diving depth
• Shockproof (fully encased in hard rubber)
• Multipoint stainless steel connector for charging
• Update option
• Wired headphones BH-01 and FX03 connectable
• Backlit graphic display
• Backlight in 20 adjustable levels
• Pocket size (belt pouch included)
• Use as Deus II main control
• Integrated high-performance lithium battery 700 mAh, 12 gr. (2-year warranty)
• Battery life with one charge up to approx. 25 hours
• Can be quickly charged together with other Deus II components in approx. 3 hours
• 5 years warranty and designed for longevity
• Patented
• Made in France

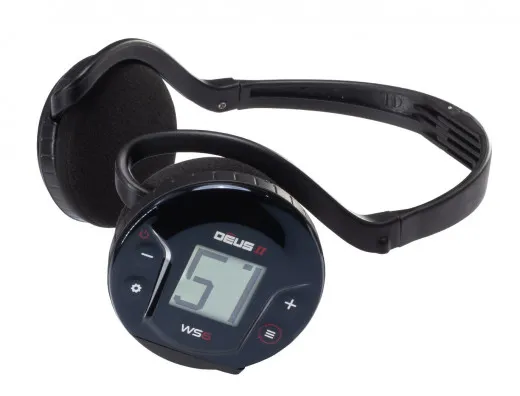

WS6 Headphones Technical Data

• With own system control and display
• Weight 82 gr. including battery
• Rainproof
• Lightweight & foldable (receiver can be removed from the headband)
• Adjustment options for many Deus II functions
• Lithium battery with approx. 15 hours runtime per charge
• Includes ABS protective box for transport and storage



FMF Coil Technical Data

• FMF®: Fast and simultaneous radio multi-frequency or 49 individual frequencies from 9 to 120 kHz
• Double-D depth search coil 24 x 13 cm (9.5" x 5") diameter
• Waterproof up to 20m diving depth
• Weight 350 gr.



Included in Delivery

• XP Deus II 24x13 HF2 FMF RC WSA II XL complete set
• 24 x 13 cm (9.5" x 5") double-D FMF HF2, waterproof carbon search coil
• Remote control, shockproof, waterproof, latest version
• Wireless headphones WSA II XL in protective box, latest version
• 3-part S-telescopic rod, latest version
• 24 x 13 cm coil cover
• Fast mains charger with charging cable for remote control, depth search coil and pinpointer
• Data cable for update, charging cable HF2
• Set underwater antenna cable
• Charging clip (for charging the coil)
• Rod holder for remote control
• Belt pouch with viewing window and neodymium magnetic fastener
• Velcro strap for secure hold in the armrest
• Coil screw set
• Detailed German operating instructions
• 5 years warranty
